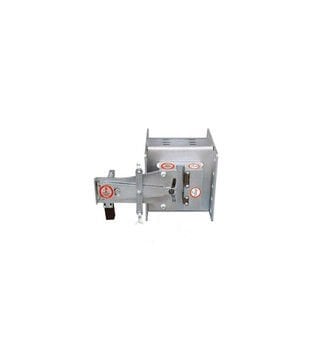

Pro 5000 Bidirectional Safety Gear with Stand (P+Q 5000kg)
0 Point - 0 Comment
248,62 USD
Pro 5000 Stand Bidirectional Slip Brake (P+Q 5000KG)
Metroplast's Pro 5000 series slip elevator brakes stand out with their easy assembly and robust structure. Pro 5000 series elevator brakes are an important spare part for maximum elevator safety.
Pro 5000 Stand Bidirectional Slip Brake (P+Q 5000KG)
- steel body
- Easy montage
- Does not cause deformation on the rail
- The brake center can be adjusted easily according to the adjustment mechanism and the rail.
- Since the brake blocks are movable during braking, it does not cause deformation in the suspension and cabin after braking.
- There is a centering system on the brake and there is no need to do a separate centering.
- The lever mechanism of the brake works from the side, so there is no need for extra work on the suspension.
- There is a safety switch and trigger mechanism on the brake, no extra action is required.
- Conforms to TSE EN 81-1 A3 EN81-2 A EAC standards
- It complies with TSE EN 81-50, EAC standards.
SPEED | P+Q |
---|---|
1 m/s | 5000 KG |
1.2 m/s | 4400 KG |
1.6 m/s | 3400 KG |
2 m/s | 3100 KG |
2.5 m/s | 2500 KG |
BOX QTY | BOX+PRODUCT WEIGHT | BOY (mm) | EN (mm) | HEIGHT (mm) |
one | 48,420 | 490 | 455 | 275 |
