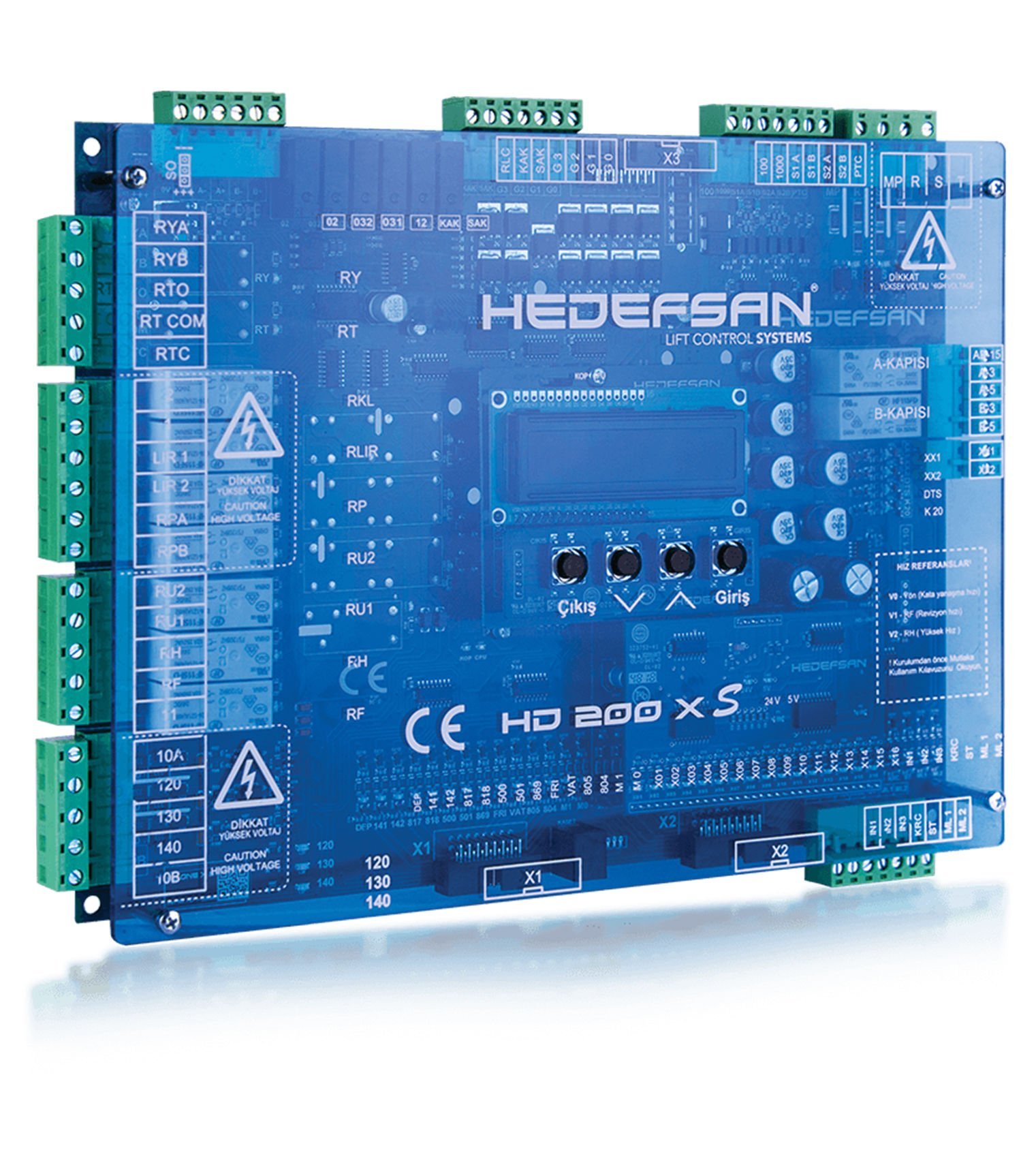

Hedefsan HD 200 X S Control Board for 16 Stops

Hedefsan HD 200 X S Control Board for 16 Stops

0 Point - 0 Comment
Category
Brand
Stock Code
9HEDEFSAN/HD-K021302
Discount Rate
37 %
Discounted Price
126,00 USD
%37 Discount
200,00 USD
126,00 USD
*
*
*
*
Share This Product on Social Media
• Simple and cumulative control can operate for up to 16 stops
• Call lights and buttons can be connected to the system with just one cable
• All parameters can be easily adjusted using the LCD screen and programming buttons on the board
• Password-protected programming, PUK code protection against unauthorized use
• The last 16 errors can be monitored on the LCD screen with stop, direction, date, and time information
• In standby mode, the LCD screen displays how long (days, hours) the elevator has been in operation since the last maintenance
• Adjustable maintenance interval, with an alert displayed on the LCD when the maintenance period expires
• Simple and error-free installation with the internal terminal board, saving time and control panel terminals
• Overload function
• Short-circuit protected, adjustable display outputs for each floor
• Display outputs can be converted to gray code or binary output
• SA relay contact outputs for direction arrows, out-of-service signal, and busy signal; shared signal input for these outputs
• Adjustable parking floor and parking time
• Bistable switch input for position information
• Option to move the cabin to the first stop when power is restored
• Warning function on the LCD screen if the door remains open for an extended period or if the stop return circuit is not detected for a long time
• Adjustable cabin light duration, lock waiting time, floor waiting time, maximum high-speed duration, and maximum low-speed duration
• Door opening signal (AUTO) and selection of the operation mode based on this signal and direction arrows
• Manual movement at slow speed using programming buttons
• Option to display the first stop of the cabin at each floor change
• Option to move the cabin to the limit switches or floor alignment during revision
• Selection of the floor for the fully automatic door of elevators with only one fully automatic door
• Electronic phase, phase sequence, and PTC (Motor temperature) control; errors related to these controls displayed on the LCD screen, with the option to disable these functions via parameter selection, and adjustment of phase level precision
Be the first to comment on this product!
Hedefsan HD 200 X S Control Board for 16 Stops 9HEDEFSAN/HD-K021302
Hedefsan HD 200 X S Control Board for 16 Stops
