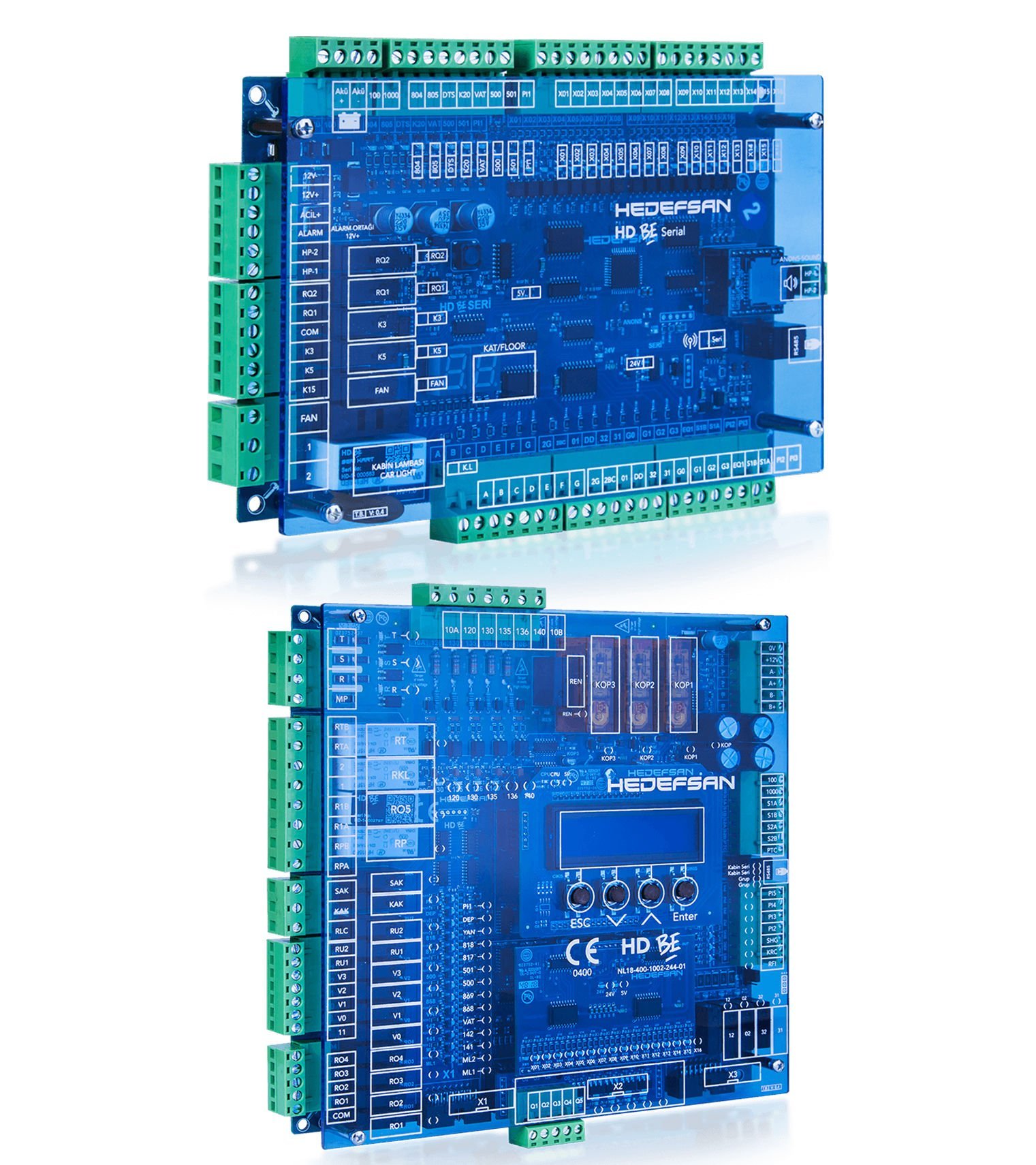

HD BE SET (EN81-20)

PACKAGE CONTENTS

1 Unit HD BE Main Board
1 Unit HD BE Serial Board
1 Unit HD BE Terminal Board
3 Units Flat Cable
Mounting Parts

• Can operate simple and cumulative control for up to 16 stops
• Call lamps and buttons can be connected to the system using just one cable
• All parameters can be easily adjusted using the LCD screen and programming buttons on the board
• Password-protected programming, PUK code protection against unauthorized use
• The last 16 errors; stops, direction, date, and time information can be monitored from the LCD screen
• In standby mode, the LCD screen can show how long (days, hours) the elevator has been in operation since the last maintenance
• Adjustable maintenance duration, with a warning on the LCD screen when the maintenance duration has expired
• Simple and error-free installation thanks to the internal terminal board, saving time and space on control panel terminals
• Overload function
• Short circuit protected, adjustable display outputs for each stop
• Display outputs can be converted to gray code or binary output
• Direction indicators, out-of-service signal, and busy signal with relay contact outputs; signal partner input for these outputs
• Adjustable parking stop and parking time
• Counter bi-stable switch input for position information
• Option to take the cabin to the first stop upon initial power-up
• Warning function on the LCD screen when the door has been open for a long time or when the stop reversal circuit cannot be detected for a long time
• Adjustable cabin light duration, lock waiting time, waiting time at the floor, maximum high-speed duration, and maximum low-speed duration
• Door opening signal (AUTO) and selection of how this signal operates based on direction indicators
• Manual movement at slow speed using programming buttons
• Option to display the first stop the cabin will go to at each floor change
• Option to move the cabin to the limit switches or floor alignment during revisions
• Selection of the floor with the fully automatic door for elevators with only one fully automatic door
• Electronic phase, phase sequence, and PTC (Motor temperature) control; display of errors related to these controls on the LCD screen, with the ability to disable these functions through parameter selection, and adjustment of phase level sensitivity
