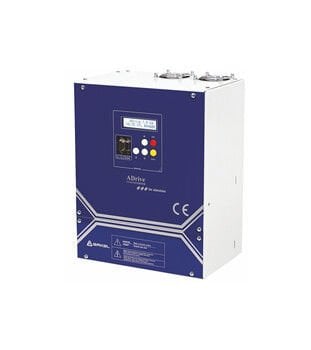

ADrive 4C220 400V 22KW - 50A VVVF Elevator Drive

Domestic design, domestic production and full technical service support.

Compatibility with asynchronous (closed or open loop) and synchronous (gearless) motors.

High travel comfort and precise stance independent of load on floors.

Strong starting and driving torque thanks to vector control.

Up to 40% savings in electricity consumption of the elevator.

Preventing sudden loads on the network by keeping the motor current under control, especially in lifts with generators.

Special design for lifts and special parameters for lift applications (with suitable units such as meters, m / s).

Reduced motor drive noise at the most with 10 Khz IPM switching frequency.

Eco-friendly energy consumption thanks to the built-in DC REACTOR.

Active and silent cooling with 4 low noise fans.

All electrical insulated control inputs and outputs.

Overload, high voltage, low voltage, short circuit, low motor current, unstable motor current, momentary power interruption, phase failure, coolant overheating, ground fault, over torque, contact failure control and other basic protection functions.

EMC test certified.

5.5, 7.5, 11, 15 and 22 kW power options.

Power Circuit:60-120V battery pack can be powered by a UPS with220VACoutput power

Control Circuit:Viability with external 24Vdc supply

Over Speed ​​Warning:At high speeds of 0,63 m/s

Serial Communication:Serial communication via RS-485 port with ARL-500 control card

Error Record:Ability to trace back to the past with the last 256 errors kept in memory

Language Options:Turkish, English, French and Magyar language options

Compliance to Standards:EMC test certified
