Metroplast's Pro 2000 s series slip elevator brakes stand out with their easy assembly and robust structure. Pro 2000 s series elevator brakes are an important spare part for maximum elevator safety.

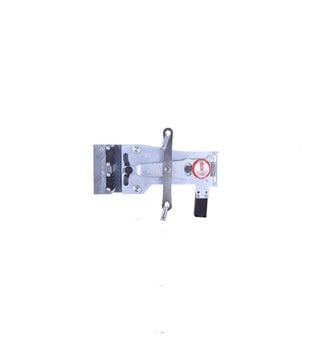

Pro 2000 S Bidirectional Slip Brake (P+Q 4000 Kg)

steel body
Easy montage
Does not cause deformation on the rail
The brake center can be adjusted easily according to the adjustment mechanism and the rail.
Since the brake blocks are movable during braking, it does not cause deformation in the suspension and cabin after braking.
There is a centered system on the brake and there is no need for a separate centering.
The lever mechanism of the brake works from the side, so there is no need for extra work on the suspension.
There is a safety switch and trigger mechanism on the brake, and it does not require any extra action.
It complies with TSE EN 81-50, EAC standards.

SPEED	P+Q min…max
0.63 m/s	567 KG … 4000 KG
1 m/s	567 KG … 4000 KG
1.2 m/s	567 KG … 3450 KG
1.6 m/s	567 KG … 2650 KG
2m/s	567 KG … 2300 KG
2.5m/s	567 KG … 1800 KG

BOX QTY	BOX+PRODUCT WEIGHT	LENGTH (mm)	EN (mm)	HEIGHT (mm)
one	16,000	200	185	330
