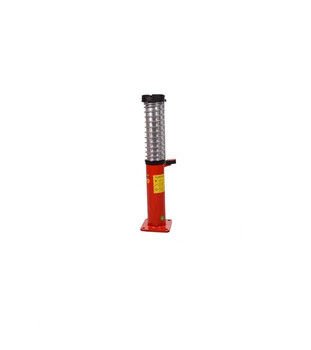

High Speed Hydraulic Buffer (2 m/S) HT20-114
0 Point - 0 Comment
150,00 USD
High Speed Hydraulic Buffer (2 m/s) HT20-114
- Conforms to TSE EN 81-50, EAC standards
- Provides easy assembly
- Provides easy oil level control
- safety control switch
- Provides ease of maintenance
| HT20-114 | ||||||
|---|---|---|---|---|---|---|
| IN | V1 | H | A | STROKE | D & C | Capacity |
| 1 m/s | 1,15 m/s | 820 mm | 530 mm | 270 mm | 140 mm | 500…3500 kg |
| 1,2 m/s | 1,38 m/s | 820 mm | 530 mm | 270 mm | 140 mm | 500…3250 kg |
| 1,6 m/s | 1,84 m/s | 820 mm | 530 mm | 270 mm | 140 mm | 500…3050 kg |
| 2 m/s | 2,3 m/s | 820 mm | 530 mm | 270 mm | 140 mm | 500…2800 kg |
| BOX QTY | BOX+PRODUCT WEIGHT | BOY (mm) | EN (mm) | HEIGHT (mm) |
| one | 21,000 | 825 | 197 | 198 |
