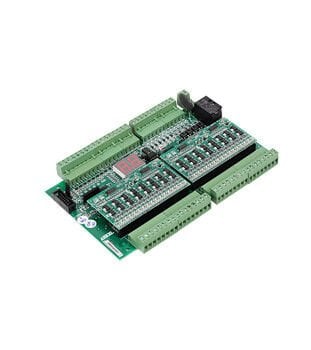

FX-SERI 32 Serial Communication Card (ARL-300)

Functions

Seral cabinet installation card supporting up to 24 stops designed for the ARL-300 control system.

Communication over 2 wires.

External records in the control panel, internal records in the revision box.

Selectable as internal or external recorder with jumper on it.

Gray/Binary code outputs that can be set from the ARL-300 control card menu.

Program the digital outputs A,B,C,,.. on the card as 7-segment, Gray Code, inverted Gray Code, Binary code and inverted binary code.

Savings on the cabinet for cabin registration buttons, digits, overload, full load, gong, directional arrows, cabin lamp, automatic door open/ clos buttons, move buttons on the revision and Gray / binary code outputs.
